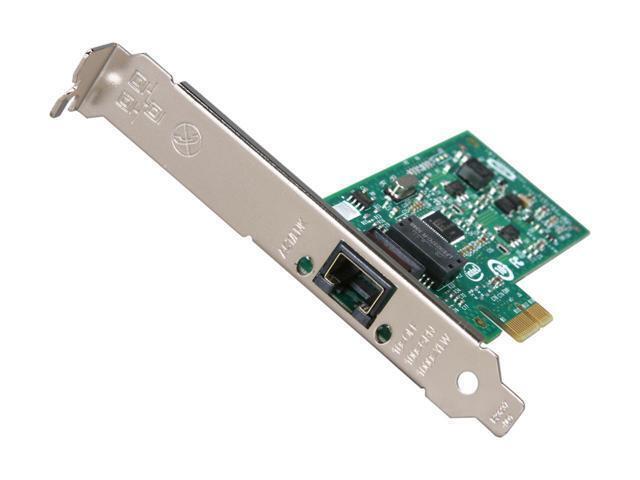

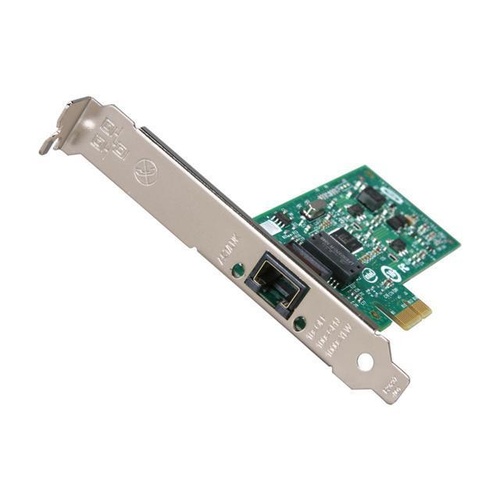

Intel PCIe CT Gigabit Ethernet Network Card EXPI9301CTBLK

SKU: 115399

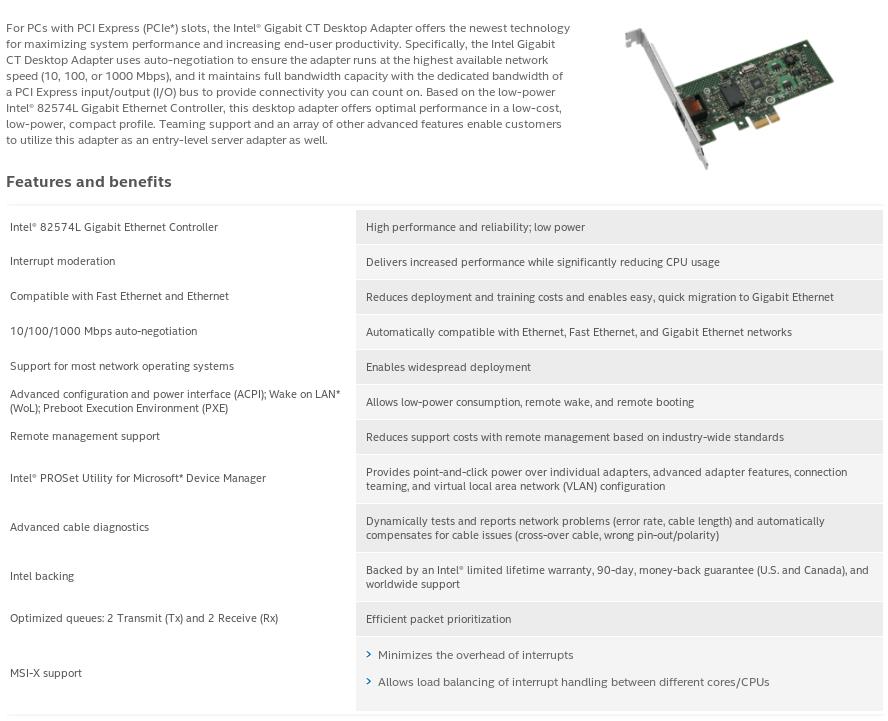

For PCs with PCI Express (PCIe) slots, the Intel Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.

(115399)

  • Delivers increased performance while significantly reducing CPU usage
  • Reduces deployment and training costs and enables easy, quick migration to Gigabit Ethernet
  • Automatically compatible with Ethernet, fast Ethernet, and Gigabit Ethernet networks
  • Enables widespread deployment
  • Allows low-power consumption, remote wake, and remote booting
  • Reduces support costs with remote management based on industry-wide standards
  • Provides point-and-click power over individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration
  • Dynamically tests and reports network problems (error rate, cable length) and automatically compensates for cable issues
  • Efficient packet prioritization
  • Minimizes the overhead of interrupts
  • Allows load balancing of interrupt handling between different cores/CPUs
Product Description Intel Gigabit CT Desktop Adapter - network adapter
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express x1
PCI Specification Revision PCIe 1.1
Ports Gigabit Ethernet
Dimensions (WxDxH) 11.9 cm x 5.5 cm
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate 1 Gbps
Network / Transport Protocol TCP/IP, UDP/IP
Processor 1 x 82574L - Intel
Compliant Standards IEEE 802.3z, IEEE 802.1p, WfM 2.0
System Requirements Microsoft DOS, Microsoft Windows 2000, Microsoft Windows Server 2003, Novell NetWare 6.5, Microsoft Windows XP SP2, SCO OpenServer 6, FreeBSD 7.0, VMware ESX Server 3.x, FreeBSD 5.x or later, UnixWare 7.1.x, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 10 SP1, Microsoft Windows Vista SP1, Microsoft Windows XP SP3
Microsoft Certification Compatible with Windows 7
Manufacturer Warranty Limited lifetime warranty



General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express x1
PCI Specification Revision PCIe 1.1
Networking
Ports Gigabit Ethernet
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate 1 Gbps
Network / Transport Protocol TCP/IP, UDP/IP
Remote Management Protocol SNMP, DMI 2.0
Status Indicators Link activity, port transmission speed
Features Full duplex capability, ACPI support, auto-negotiation, load balancing, wake on LAN (WOL), TCP/IP offloading, Jumbo Frames support
Compliant Standards IEEE 802.3z, IEEE 802.1p, WfM 2.0
Processor / Memory
Processor 1 x 82574L - Intel
Expansion / Connectivity
Interfaces 1 x 1000Base-T - RJ-45
Compatible Slots 1 x PCI Express x1 - low-profile
Miscellaneous
Included Accessories Low-profile bracket
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards FCC Class B certified, UL, VCCI, C-Tick, BSMI, MIC, RoHS
Package Type Bulk
Software / System Requirements
Software Included Intel PROSet
OS Required Microsoft DOS, Microsoft Windows 2000, Microsoft Windows Server 2003, Novell NetWare 6.5, Microsoft Windows XP SP2, SCO OpenServer 6, FreeBSD 7.0, VMware ESX Server 3.x, FreeBSD 5.x or later, UnixWare 7.1.x, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 10 SP1, Microsoft Windows Vista SP1, Microsoft Windows XP SP3
Dimensions & Weight
Depth 11.9 cm
Height 5.5 cm
Manufacturer Warranty
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 55 °C
Humidity Range Operating 0 - 90% (non-condensing)
SKU 115399
Model # EXPI9301CTBLK
Brand INTEL
Shipping Weight 0.1400kg
Shipping Width 0.150m
Shipping Height 0.250m
Shipping Length 0.030m
